Powerful Fitting Package that Works with Measure-X® and MeasureMind® 3D MultiSensor Metrology Software

MeasureFit® is a powerful fitting package that works with Measure-X® and MeasureMind® 3D MultiSensor metrology software. Handling multiple sets of measured data at a time, MeasureFit quickly identifies potential assembly issues.

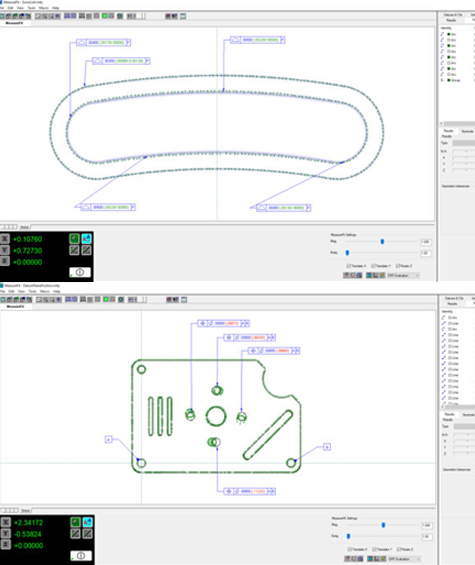

A “best fit” match between a template and measurement results is created by the software and a color-coded and exaggerated graphic representation lets the user see how well the data fits. Trouble spots trends, and potential problems become crystal clear.

It provides the ability to add mmC to datum features, apply the most appropriate fit method, and deliver results both graphically and numerically.

MeasureFit software is accessed via a tab in Measure-X, allowing it to use the same user interface. There is no switching between separate applications. This tight integration allows fitting activities to be stored and played back as part of the Measure-X® inspection routine.

MeasureFit can also be used in a stand-alone or off-line mode and can import and export DXF files. DXF files can be transformed to MeasureFit project files that contain datums, GDT tolerances, and material condition of features. Data point clouds can be imported and compared to a MeasureFit Project File, and the results can be stored in an archive containing all numeric and graphic result data.
